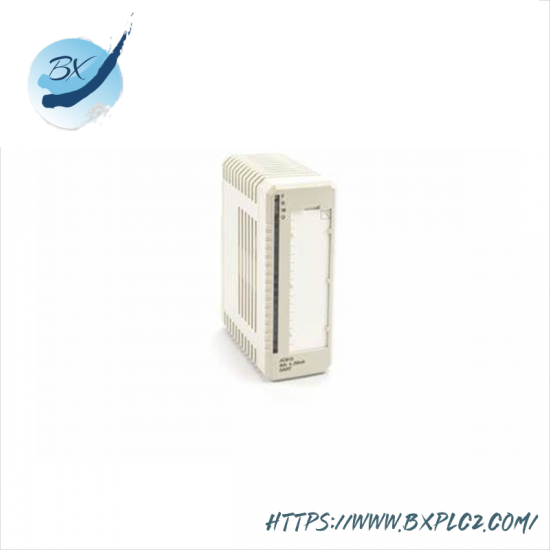

ABB A0815 Analog Output Module, Industrial Control Systems

Operating Voltage:DC 24V

Output Range:-10V to +10V or 0V to 10V

Accuracy:+/- 0.2% FS

Resolution:12-bit

Load Current:Max. 35mA per channel

Communication Interface:Modbus RTU

Environmental Temperature:-25°C to +70°C

Storage Temperature:-40°C to +85°C

Humidity:5% to 95% non-condensing

    The A0815 Analog Output Module from ABB is engineered to deliver exceptional performance and reliability in industrial automation scenarios. It offers precise analog signal generation with an accuracy of +/- 0.2% Full Scale, ensuring high fidelity in controlling industrial processes.

    With a versatile output range of either -10V to +10V or 0V to 10V, this module caters to a wide spectrum of application needs, making it suitable for temperature control, motor speed regulation, and other proportional control tasks.

    Featuring a high-resolution 12-bit output, the A0815 ensures smooth transitions between output levels, enhancing the precision of control systems. Its capability to handle a maximum load current of 35mA per channel makes it ideal for driving actuators and sensors in demanding environments.

    Equipped with a Modbus RTU communication interface, the module seamlessly integrates with existing industrial networks, facilitating easy setup and configuration through standard software tools. This enhances operational efficiency and reduces the complexity of system integration.

    Designed to withstand harsh industrial conditions, the A0815 operates within a temperature range of -25°C to +70°C and can be stored at temperatures up to +85°C without condensation. Its compact size and rugged construction make it suitable for deployment in a variety of industrial settings.
