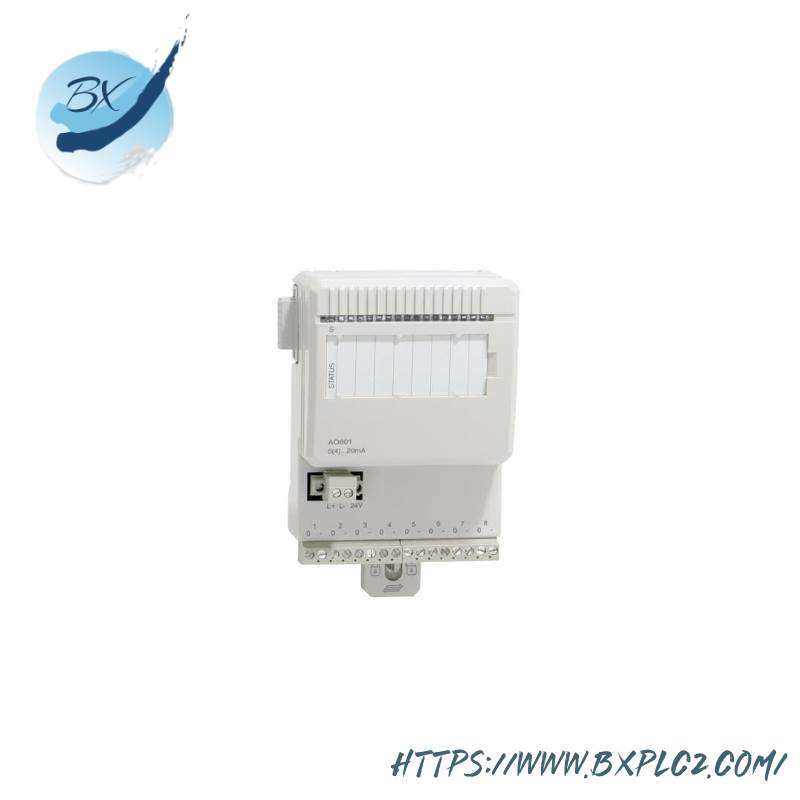

ABB AO801 Analog Output Module, Industrial Control Systems

Module Type:Analog Output

Model:AO801

Manufactured By:ABB

Connection Type:Modular

Operating Voltage:100-240V AC

Operating Current:Less than 10mA

Output Type:4-20mA

Resolution:12-bit

Accuracy:±1% of full scale

Operating Temperature:-25°C to +60°C

Storage Temperature:-40°C to +85°C

Enclosure Rating:IP20

Dimensions (L x W x H):110mm x 90mm x 100mm

Weight:0.5kg

    The ABB AO801 Analog Output Module is engineered for seamless integration into complex industrial control networks, ensuring reliable performance under varying environmental conditions. This module supports a wide range of applications, from HVAC control to chemical process automation, where precise analog signal modulation is crucial.

    Crafted from high-grade materials for durability and reliability, the AO801 features a modular design that allows for easy installation and maintenance. Its compact size and lightweight construction make it an ideal choice for space-constrained industrial environments.

    With a resolution of 12 bits, the AO801 offers exceptional accuracy, making it suitable for applications requiring high precision and repeatability. Its ability to output a 4-20mA signal enables compatibility with most industrial sensors and actuators, facilitating smooth integration into existing systems.

    The module operates within a broad temperature range, ensuring stable performance in diverse industrial settings. It can be safely stored at extreme temperatures before installation, offering flexibility in deployment scenarios.

    Designed with safety and efficiency in mind, the AO801 Analog Output Module complies with international safety standards and is rated IP20 for protection against non-hazardous dust. This ensures it meets the stringent requirements of industrial automation.
