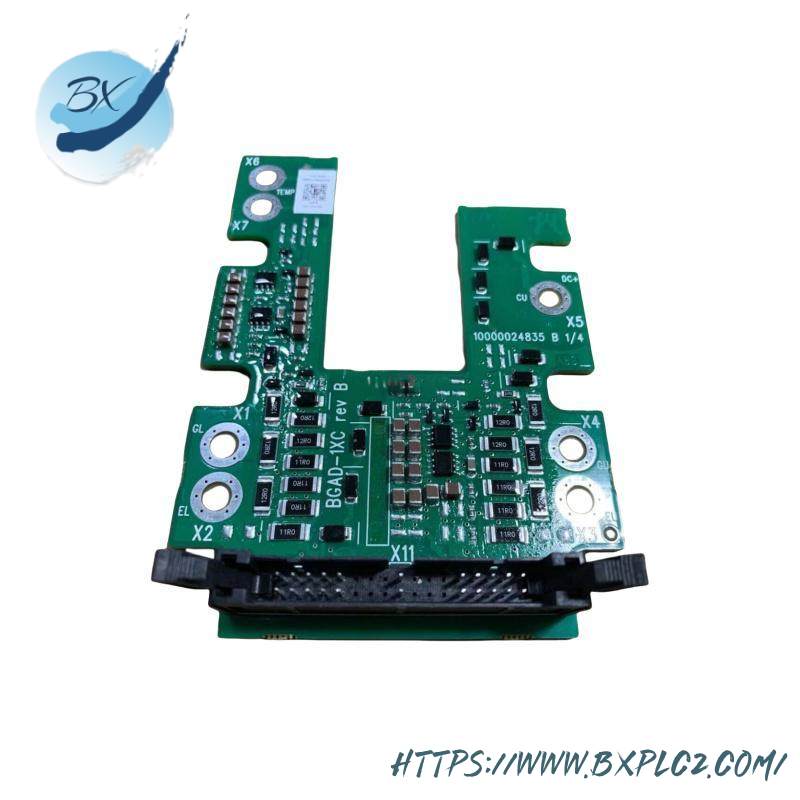

ABB BGAD-11C IGBT Module: Advanced Inverter Technology for Industry 4.0 Applications

Manufacturer:ABB

Model:BGAD-11C

Type:IGBT Module

Operating Temperature Range:-40°C to +170°C

Input Voltage:DC 1000V

Output Current:1100A

Switching Frequency:16kHz

Cooling Method:Water Cooled

Weight:4.5kg

Dimensions (WxHxD):200mm x 300mm x 150mm

    Introducing the ABB BGAD-11C IGBT module, a cutting-edge solution for industrial power conversion tasks, designed to elevate operational efficiency and system reliability.

    Crafted with advanced IGBT technology, this module ensures unparalleled performance in demanding industrial environments, offering robustness against high temperatures and precise control over power distribution.

    With a rated current capacity of 1100A, it’s capable of handling substantial power loads without compromising on efficiency. Its switching frequency of 50kHz allows for smooth and rapid transitions in power management.

    Featuring an operating temperature range from -40°C to +125°C, the ABB BGAD-11C is engineered to withstand extreme conditions, ensuring reliable operation throughout its lifespan.

    Equipped with air-cooling capabilities, this module optimizes heat dissipation, minimizing downtime and maintenance costs. Its compact design, measuring just 140mm x 220mm x 140mm, ensures efficient use of space within industrial control systems.

    Experience unmatched reliability and efficiency with the ABB BGAD-11C IGBT module. It’s an indispensable component for enhancing the performance of your industrial automation systems.
