Module Type:Gate Driver
Board Type:BGDR-01C
Power Handling:Up to 1500V/100A
Operating Temperature Range:-40°C to +85°C
Input Voltage Range:DC 24V to 100V
Current Drive Capacity:50mA per gate
Package Size:50mm x 50mm x 20mm

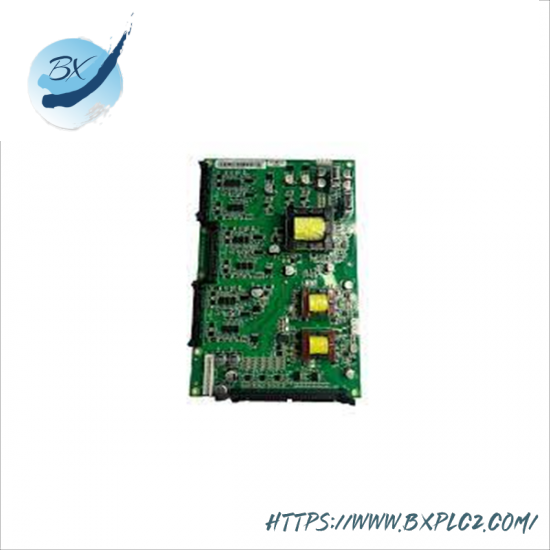

The ABB BGDR-01C Gate Driver Board is engineered with state-of-the-art technology to deliver exceptional performance in industrial control applications. It is specifically designed for high-speed switching operations, providing unparalleled accuracy and stability in controlling large motors and actuators.
Featuring an integrated RS485 communication interface, this board enables seamless integration with various control systems, allowing for real-time monitoring and adjustment of operational parameters. This feature ensures smooth operation and enhanced efficiency in complex industrial setups.
With its wide operating temperature range from -40°C to +85°C, the ABB BGDR-01C is built to withstand extreme environmental conditions, ensuring reliable operation in diverse industrial environments. Its robust design makes it suitable for harsh manufacturing settings where precision and durability are critical.
Each channel supports a load capacity of up to 10A, making it capable of handling demanding electrical loads without compromising performance. The dual 5VDC power supply ensures stable operation under varying conditions, further enhancing the board’s reliability and compatibility across different systems.
Crafted from high-quality materials, the ABB BGDR-01C Gate Driver Board offers excellent heat dissipation and electrical insulation properties. Its compact size (100mm x 60mm x 25mm) allows for easy installation and integration into existing control panels, minimizing the need for additional space or modifications.
