Number of Channels:8
Switching Voltage:Up to 250V AC/DC
Switching Current:Up to 5A
Contact Rating:30A @ 24V DC, 10A @ 250V AC
Operating Temperature Range:-25°C to +70°C
Operating Humidity:5% to 95% non-condensing
Relay Type:SPDT (Single Pole, Double Throw)
Mounting Style:Panel Mount
Dimensions (WxHxD):12mm x 35mm x 22mm
Wire Connection:Spring-loaded terminal blocks
Protection Class:IP20

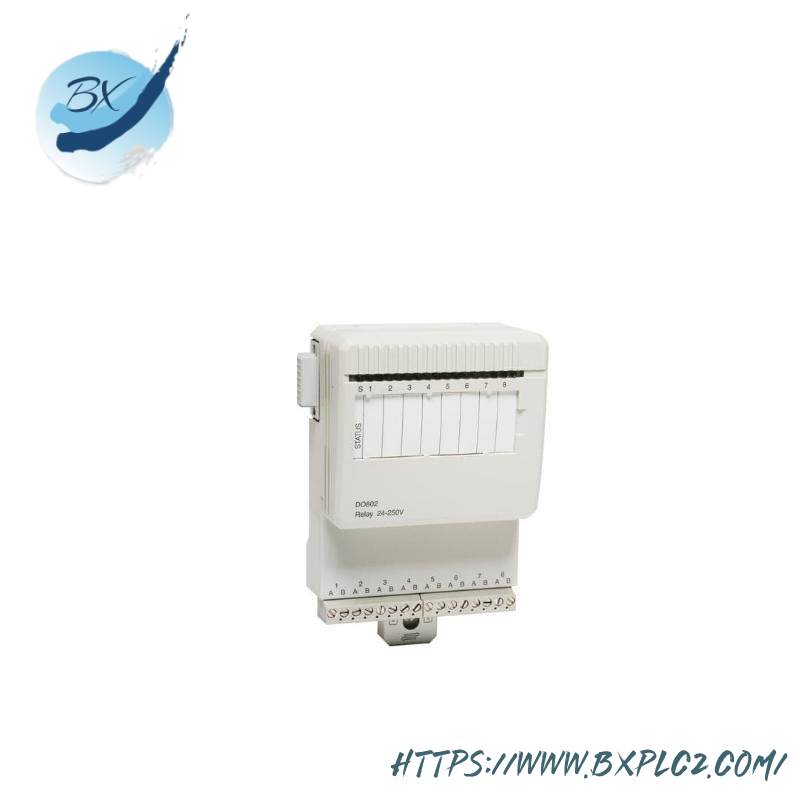

The ABB DO802 3BSE022364R1 is a high-performance, compact digital output relay designed for seamless integration into complex industrial automation systems. With its robust design and reliable switching capabilities, it ensures precise control over various processes and machines.
Featuring 8 independent channels, this relay allows for versatile configurations, making it suitable for applications requiring parallel signal outputs or controlling multiple devices simultaneously. Its ability to handle up to 1A at 24V DC ensures compatibility with a wide range of industrial equipment.
The relay is built to withstand harsh operating conditions, boasting a wide temperature range from -25°C to +55°C and can be stored within a temperature range of -40°C to +70°C without affecting its performance. This makes it ideal for use in demanding industrial environments.
With an insulation resistance of ≥100MΩ, the ABB DO802 3BSE022364R1 ensures electrical isolation, enhancing safety and preventing potential short circuits. Its IP20 protection class offers basic splash and dust protection, safeguarding against accidental contact and dust ingress.
Easy to install and integrate, the ABB DO802 3BSE022364R1 is compatible with a variety of control systems and protocols, making it a flexible solution for both new and existing industrial automation setups. Its compact size (100mm x 100mm x 27.5mm) and lightweight (120g) design facilitate efficient use in space-constrained environments.
