Operating Range:0-20mA, 0-10V
Resolution:16-bit
Sampling Rate:1kHz
Environmental Temperature:-25°C to +70°C
Power Supply Voltage:DC 24V
Communication Interface:Modbus RTU
Dimensions:144mm x 100mm
Weight:0.2kg

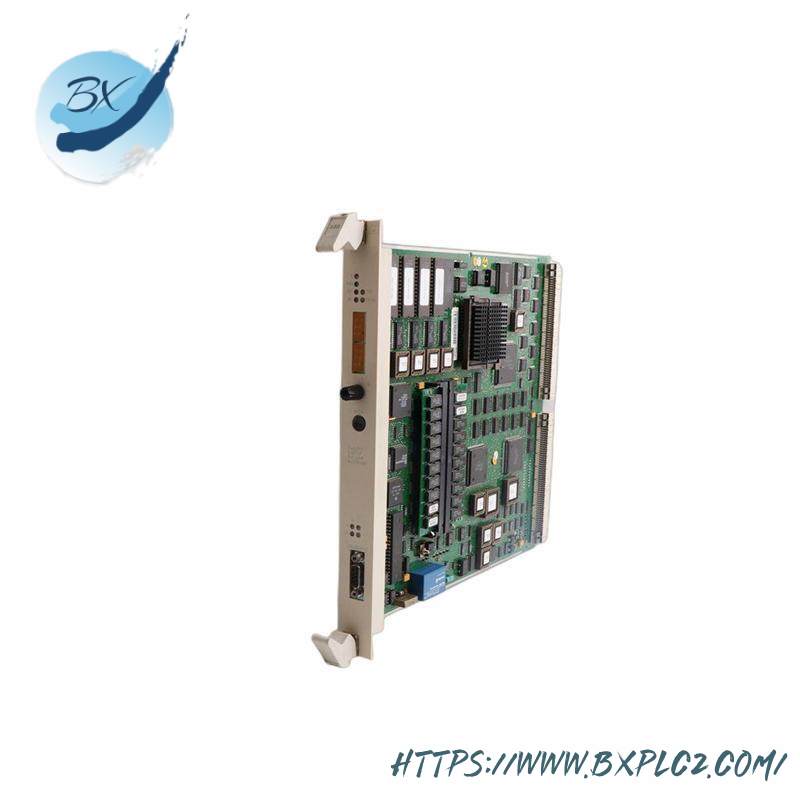

The ABB DSDI130 Analog Input Board is an essential component for any industrial control system seeking high precision in analog signal processing. With its advanced design, it ensures accurate data acquisition under various environmental conditions.
Equipped with 16 channels capable of measuring voltages ranging from -10V to +10V, this board offers a wide dynamic range suitable for diverse industrial applications. Its high sampling rate of 1000 Hz allows for fast response times in dynamic processes.
Featuring a low input impedance of 1 kΩ, the board minimizes signal distortion, ensuring reliable data transmission. It is powered by a stable DC 24V supply, ensuring continuous operation in industrial environments.
Operational in temperatures ranging from -20°C to +70°C, the DSDI130 is built to withstand harsh industrial conditions. For storage, it can endure temperatures up to +85°C without damage, making it ideal for long-term use in challenging locations.
Compact yet robust, the board measures 128 mm x 96 mm x 60 mm, fitting seamlessly into existing control panel layouts. Its lightweight design at 250 grams facilitates easy installation and maintenance.
