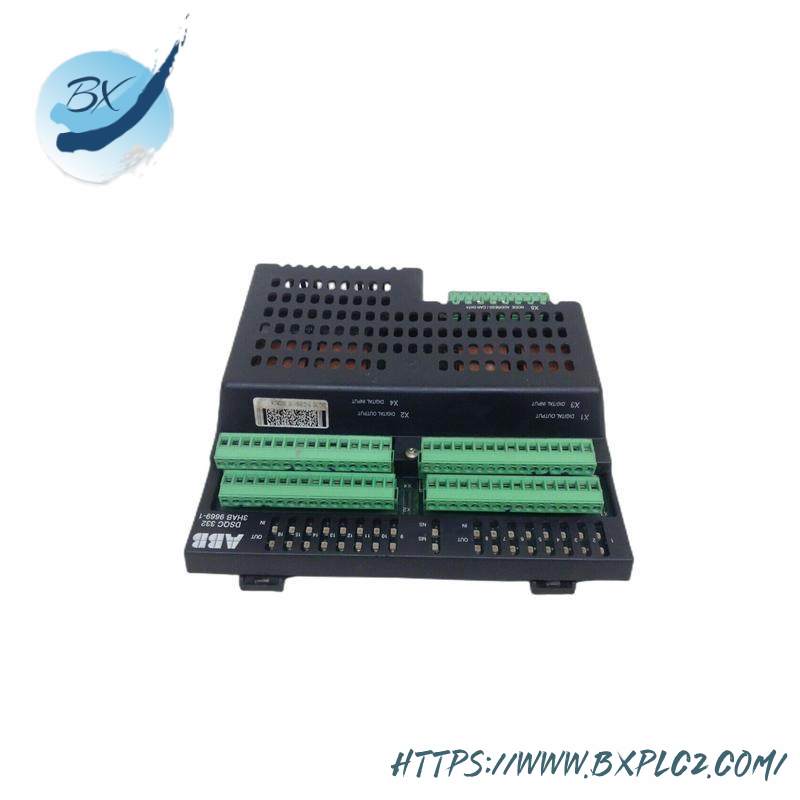

ABB DSQC332 – High-Performance Digital Relay Module

Manufacturer:ABB

Model Number:DSQC332

Product Type:Digital Relay Module

Operating Voltage:DC 24V

Relay Rating:12V DC / 5A

Number of Relays:16

Terminal Configuration:2 x 16-pin terminals

Connection Type:RS-232 / RS-485

Communication Interface:MODBUS RTU

Dimensions (WxHxD):120mm x 91mm x 47mm

Weight:0.18kg

Operating Temperature:-20°C to +60°C

Storage Temperature:-40°C to +85°C

Certification:CE, UL, CSA

    The ABB DSQC332 Digital Relay Module is designed with precision and reliability in mind, making it an indispensable component for industrial automation tasks. Its compact design and high-quality materials ensure durability and longevity in harsh environments.

    Featuring 16 digital relay outputs, this module provides a wide range of switching capabilities, suitable for controlling motors, sensors, and other electrical devices with ease. It supports both common and normally open contacts, catering to diverse application needs.

    Equipped with a robust IP20 enclosure, the DSQC332 is protected against dust and light splashes, ensuring reliable operation in industrial settings. The module’s compatibility with RS-485 communication interface allows seamless integration into existing systems for enhanced control.

    With an operating temperature range from -20°C to +70°C, the ABB DSQC332 is designed to withstand extreme conditions without compromising performance. This makes it an ideal choice for applications in manufacturing, automotive, and other industries requiring robust and reliable control solutions.

    Installation and setup are straightforward, thanks to its intuitive design and compatibility with ABB‘s comprehensive automation software suite. The DSQC332 Digital Relay Module not only simplifies the implementation of control systems but also enhances system efficiency and reliability.
