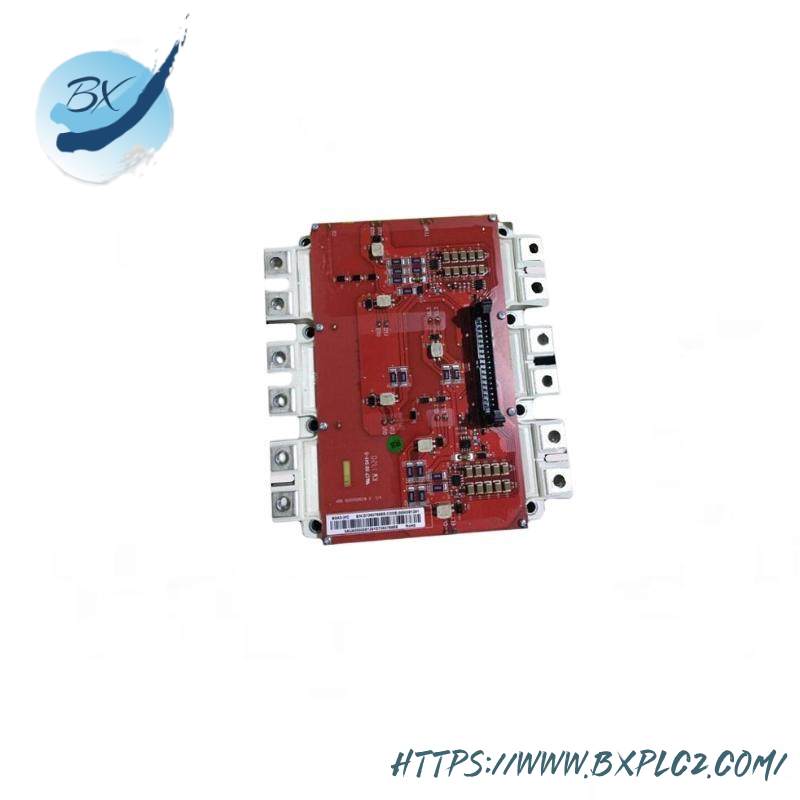

ABB FS500R17OE4D/BGAD-21C Infineon IGBT Module

Model Number:FS500R17OE4D/BGAD-21C

Brand:ABB

Manufacturer:Infineon

Power Rating:500A at 1700V

Operating Temperature Range:-40°C to +175°C

Package Size:L x W x H: 150mm x 100mm x 30mm

Weight:0.5kg

Cooling Method:Natural convection cooling

Protection Level:IP20

Input Voltage Range:DC 300V to DC 1500V

Output Current:Continuous 500A

Insulation Resistance:≥10MΩ

Switching Frequency:Up to 25kHz

Di/dt Limit:≤50kA/s

dv/dt Limit:≤12kV/μs

    The ABB FS500R17OE4D/BGAD-21C IGBT module is a cutting-edge solution for industrial and commercial power electronics, offering unparalleled performance and durability.

    Engineered with Infineon’s latest IGBT technology, this module ensures high efficiency and reduced switching losses, making it ideal for applications requiring precise control and low power consumption.

    Its robust thermal design and wide operating temperature range (-40°C to +175°C) enable seamless integration into diverse industrial environments, ensuring reliable operation under extreme conditions.

    Designed with ease-of-use in mind, the TO-247-3 package provides a standard interface compatible with a wide range of power conversion systems, simplifying installation and maintenance processes.

    Certified to meet international safety standards (IEC 60950-1, UL 60950-1), the ABB FS500R17OE4D/BGAD-21C module is RoHS compliant, ensuring environmental responsibility and compliance with global regulations.
