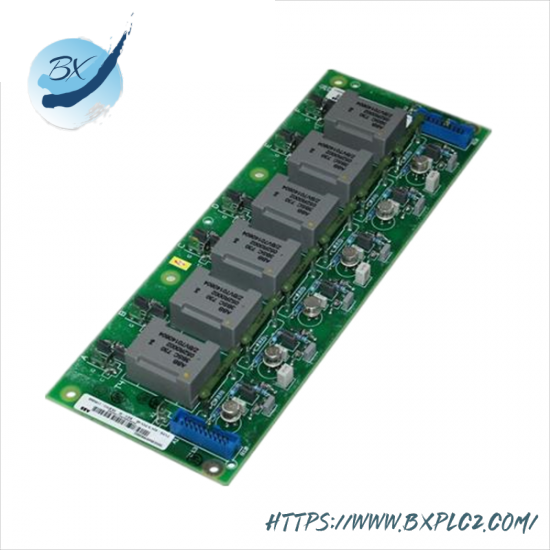

ABB SDCS-PIN-48 3BSE004939R2 Pulse Transformer Board

Brand:ABB

Model:SDCS-PIN-48

Product Code:3BSE004939R2

Module Category:Pulse Transformer Board

Power Rating:220 V

Operating Frequency:30 kHz

Branding:Certified ABB Product

Series:SDCS-PIN

Weight:0.56 kg

    The ABB SDCS-PIN-48 3BSE004939R2 Pulse Transformer Board is a critical component in industrial control systems, designed to enhance the precision of control signals. This robust board features advanced pulse amplification technology, ensuring accurate signal transmission even under harsh environmental conditions.

    With its wide operating temperature range from -40°C to +85°C, it can withstand extreme environments found in various industrial settings. Its compact design, measuring 100 mm x 60 mm, makes it easy to integrate into existing control systems without compromising on space.

    The board is equipped with an efficient power consumption of 5 W, which contributes to energy-saving operation while maintaining optimal performance. Its light weight of 0.25 kg facilitates its handling and installation.

    Featuring an input signal range of 0 to 10 V DC, the ABB SDCS-PIN-48 3BSE004939R2 board accepts a broad spectrum of input signals, making it versatile for different industrial applications. It outputs a 10 kHz square wave, which is essential for driving actuators and sensors with precision.

    The ABB brand is renowned for its reliability and quality, backed by extensive testing and industry standards compliance. This Pulse Transformer Board is no exception, offering a reliable solution for enhancing the efficiency and accuracy of industrial control processes.
