Number of Channels:8
Input Range:0-5 VDC, 0-10 VDC
Resolution:12-bit, 1 in 4096 (unipolar), 13-bit, 1 in 8192 (bipolar)
Power Budget Requirement:Max 100mA (60mA) at 5VDC
Environmental Requirements:No corrosive gases, 0-60°C (32-140°F), 5-95% non-condensing humidity
PLC Update Rate:1 channel per scan max (DL230 CPU), 8 channels per scan max (DL240/250-1/260 CPU)

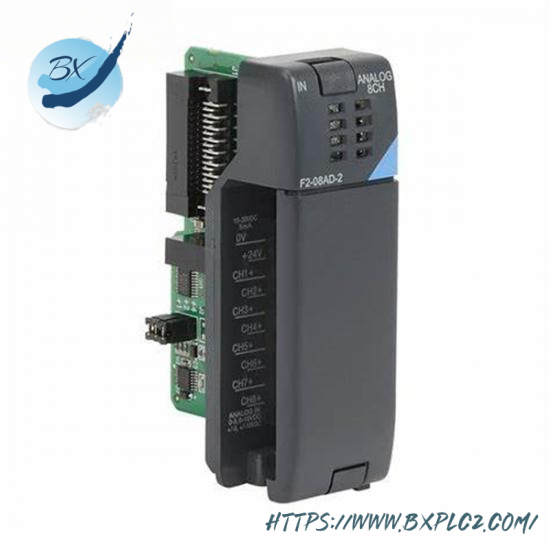

The Koyo DirectLOGIC F2-08AD-2 Analog Input Module is specifically designed to seamlessly integrate into industrial control systems, offering enhanced reliability and ease of use. Its robust, optically isolated 8-channel design ensures precise voltage input conversion from analog to digital signals, making it suitable for various applications requiring accurate measurement and control.
Each channel is equipped to handle both unipolar and bipolar voltages within their respective ranges, providing flexibility and versatility. The module supports high-quality analog conversions, crucial for applications requiring high precision and accuracy.
User convenience is prioritized with a removable terminal block feature, allowing for easy installation and maintenance without interrupting system operation. This design ensures the module remains functional even when undergoing maintenance or updates, enhancing overall system uptime and efficiency.
For use with DirectLOGIC CPUs like DL240, DL250-1, or DL260, the F2-08AD-2 allows for simultaneous updates across all channels during a single scan, significantly improving operational efficiency and reducing the need for multiple scan cycles.
With its compact size and robust build quality, the Koyo DirectLOGIC F2-08AD-2 Analog Input Module is a reliable addition to any industrial control setup, ensuring seamless integration and enhanced performance.
