Model Number:531X305NTBANG1
OEM:GE Motors and Industrial Systems
Type:Terminal Board
Series:531X Series
Regulated Power Outputs:5 VDC and 15 VDC
Unregulated Power Outputs:24 VDC or 125 VAC
Encoder Outputs:Differential A quad B (Optically Isolated)
Relay Outputs:Seven, Form A or Form C, 120 VAC contacts
Analog I/O Scaling:Four potentiometers for low-level analog I/O
Switch Component:Seven toggle switches
Inductor Coils:Two
Potentiometers:Four
Header Connectors:Three, various sizes
Jumper Switches:Twenty-four
Vertical Pin Cable Connectors:Three, two male and one female

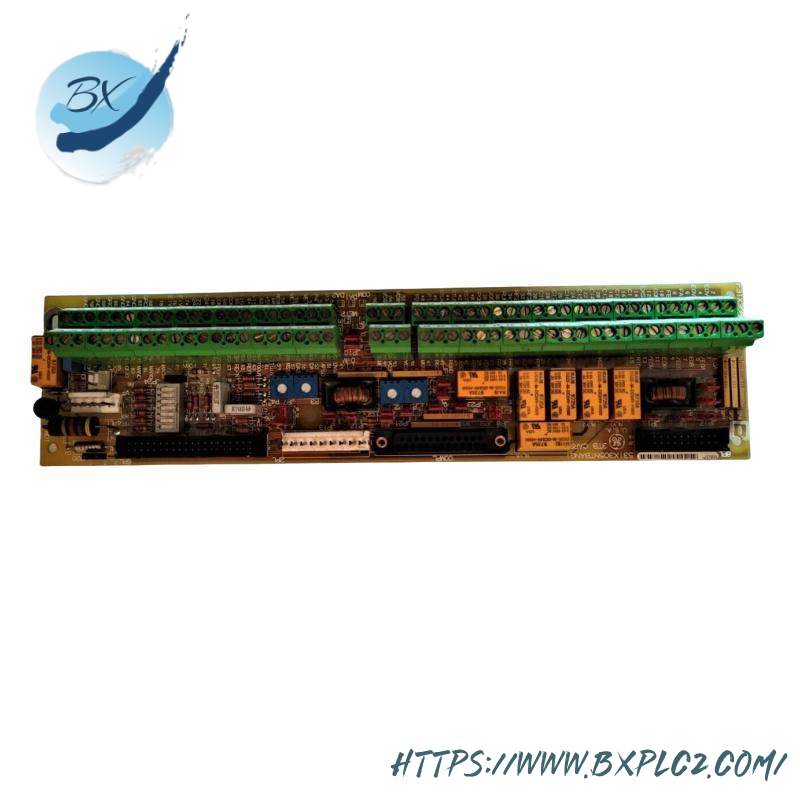

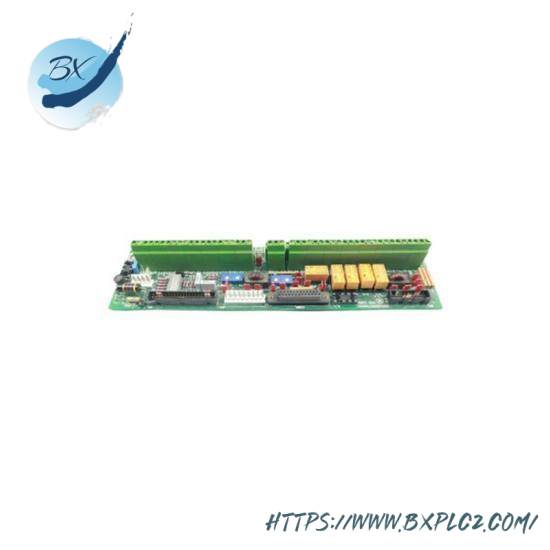

The GE 531X305NTBANG1 NTB/3TB Terminal Board is a highly reliable and efficient interface solution for industrial control systems. Designed specifically for use within exciter or drive cabinets, this board offers robust connections for digital control inputs and relay outputs. With its ability to produce both regulated and unregulated power supplies, it ensures consistent performance under varying conditions. The board’s differential A quad B encoder interface is optically isolated, offering enhanced reliability and noise filtering. Seven relay outputs, configurable as either form A or form C, provide versatile control options. Additionally, four potentiometers enable precise scaling of low-level analog I/O, making this board ideal for applications requiring fine-tuned control and monitoring. Its compact design and easy-to-use toggle switches make installation and maintenance straightforward.
