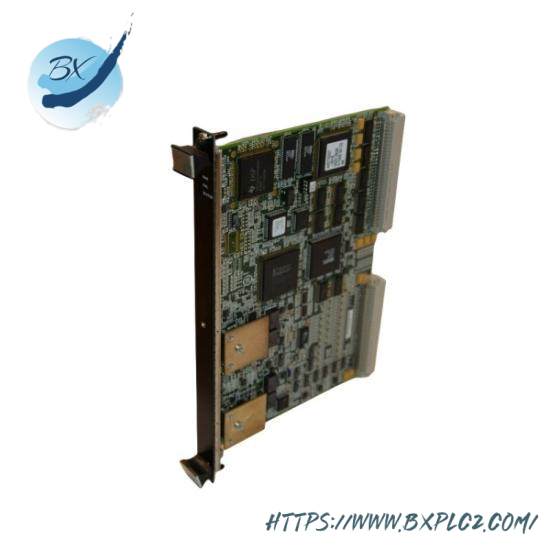

General Electric IS200VAICH1DAB – Analog Input/Output Board

Manufacturer:General Electric

Model:IS200VAICH1DAB

Series:VAIC H1D

Functional Description:Analog Input/Output Board

Part Number:IS200VAICH1DAB

Functional Acronym:VAIC

PCB Coating:Conformal Coating

Functional Revision😀

Board Type:Double-Slot

Dimensions:Standard

Operating Temperature:-40°C to +70°C

Storage Temperature:-55°C to +85°C

Voltage Range:12V DC

Current Limit:100mA

Input Resistance:1 kΩ

Output Impedance:50 Ω

Communication Interface:VME Bus

Number of Channels:16

Analog Input Range:-10V to +10V

Analog Output Range:-10V to +10V

Relay Outputs:4

Relay Rating:250VAC / 10A

Switching Frequency:5 kHz

Signal Processing Accuracy:±0.1%

Noise Reduction:SNR > 90 dB

Environmental Compliance:UL, CE, RoHS

    Crafted with precision, the General Electric IS200VAICH1DAB Analog Input/Output Board seamlessly integrates into industrial control systems, offering unparalleled accuracy in signal processing.

    Designed for rugged environments, this board withstands extreme temperatures, ensuring continuous operation in challenging industrial settings.

    With customizable input and output voltage ranges, users can tailor the board to meet specific application requirements, optimizing system performance.

    Featuring a conformal coating for enhanced protection against dust, moisture, and corrosive substances, this board ensures reliability and longevity.

    Ergonomically designed for ease of integration, the board boasts dedicated connectors that simplify installation and maintenance processes.

    Backed by General Electric’s commitment to quality and innovation, the IS200VAICH1DAB board is engineered to deliver superior performance, reliability, and compatibility with Mark VI series control systems.
